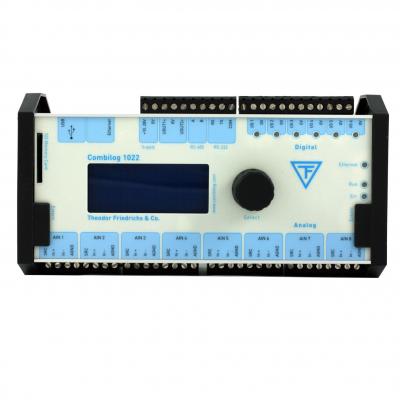

COMBILOG 1022

توضیحات

Technical Specification
Variations

Analog Inputs:8 analog inputs are available
Analog measuring categories:Voltage,Current,Resistance measurement and measurement with Thermo Elements
Measuring Range:+6,25 mV…10 V;62.5 μA…25 mA;200 Ω…20 kΩ
Accuracy:0,01% (depending on the range;check PDF)
Digital Inputs resp. Digital Outputs:6 (Can be used either as input or output)
Digital measuring categories:Digital status aquisition,Frequency,Counter,Graycode
Logical Channels:32 (e.g. Arithmetic-Channel,Alarm-Channel,Default-Channel)
Consumption:0,1 W (depending on the configuration)
(e.g. 3,6 mA at 28 V)
Memory:Internal 7 MB Ringmemory
Additional Memeory by SD Card
(Both memories can be used at the same time.)
Sample Rate:selectable for each Channel between 0,25 sec and 1 h
(By choosing 0,25 sec. the Combilog will sample as fast as possible,which is min. 4 samples a sec. and max. 100 samples a sec. depending on the numbers of sensors connected).
Average intervall:0,5 sec. to 12 h
Baud Rate:2400,4800,9600,19200 and 38400 bit/s
Network Port:Yes,Ethernet compatible
Serielle Data Interface:RS 232 and RS 485
Master-Slave Mode:The Combilog can be operated in a Master-Slave Mode. If the Combilog is the Master there is a total of 32 Channels availabel. If a PC is the master there are 31 Combilog as slave available. Each Combilog can use all of its own channgels.
Display:LED Display with four lines
Low-Pass-Filter:configurable between 10 and 400 Hz
Can you connect Kipp &Zonen Sensors directly?:Yes,all Kipp &Zonen Sensors can be connected directly without using a measuring amplifier.
Drift of the Temperature:up to 2ppm/K with internale drift correction and connection of a PT 100 Sensor;
without PT 100 less than 25 ppm/K
Protocol:ASCII,MODBUS,PROFIBUS
Export Data Format:stored in .csv format
Operating Temperature:-40 …+85 °C

توضیحات تکمیلی

برند و سازنده :	تئودور فردریش
Analog Inputs:	8 analog inputs are available
Analog measuring categories:	Voltage,Current,Resistance measurement and measurement with Thermo Elements
Measuring Range:	+6,25 mV…10 V;62.5 μA…25 mA;200 Ω…20 kΩ
Accuracy:	0,01%
Digital Inputs resp. Digital Outputs:	6 (Can be used either as input or output)
Digital measuring category	Digital status aquisition,Frequency,Counter,Graycode
Logical Channels:	32 (e.g. Arithmetic-Channel,Alarm-Channel,Default-Channel)
Consumption:	0,1 W
Memory:	Internal 7 MB Ringmemory
Sample Rate:	selectable for each Channel between 0,25 sec and 1 h
Average intervall:	0,5 sec. to 12 h
Baud Rate:	2400,4800,9600,19200 and 38400 bit/s
Network Port:	Yes,Ethernet compatible
Serielle Data Interface:	RS 232 and RS 485
Display:	LED Display with four lines
Low-Pass-Filter:	configurable between 10 and 400 Hz
Protocol:	ASCII,MODBUS,PROFIBUS
Export Data Format:	stored in .csv format
Operating Temperature:	-40 …+85 °C
